| Model No. | 9000Btu | 12000Btu | 18000Btu | 24000Btu | ||
| Type | heating pump | heating pump | heating pump | heating pump | ||
| Control type | remote | remote | remote | remote | ||
| Rated cooling capacity | Btu/h;W | 9000(2800~11500) | 12000(3410~13000) | 18000(4095~19500) | 24000(5120~24900) | |
| Rated heating capacity | Btu/h;W | 9500(3210~12500) | 12500(3480~13500) | 18000(4095~19500) | 24000(5120~24900) | |
| EER for cooling | W/W | 3.21 | 3.21 | 2.82 | 2.81 | |
| COP for heating | W/W | 3.61 | 3.61 | 3.07 | 2.81 | |
| Moisture removal | Liters/h | 1.0 | 1.2 | 1.8 | 2.2 | |
| Pressure | High(DP) | MPa | 4.5 | 4.5 | 4.5 | 4.5 |
| Low(SP) | MPa | 1.9 | 1.9 | 1.9 | 1.9 | |
| Indoor noise level(S/H/M/L/Mute) | dB(A) | 38/35/32/27/25 | 39/37/34/30/27 | 43/40/38/35/33 | 49/47/45/43/41 | |
| Outdoor noise level | dB(A) | 48 | 49 | 52 | 55 | |
| Electrical Data | ||||||
| Power supply | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | ||
| Voltage Range | V | 187-265 | 187-265 | 198~242 | 198~242 | |
| Rated current | Cooling | A | 3.8(1.2~7.2) | 5.1(1.8~8.0) | 8.9(1.4~12.0) | 11.8(1.5~13.5) |
| Heating | A | 3.6(1.2~7.5) | 4.7(1.8~8.5) | 8.1(1.4~12.0) | 11.8(1.5~13.0) | |
| Rated input | Cooling | W | 820(240~1250) | 1095(320~1600) | 1870(300~2500) | 2500(350~2800) |
| Heating | W | 770(240~1350) | 1013(320~1500) | 1720(300~2500) | 2500(350~2700) | |
| Annual energy consumption(cooling) | kwh | 410 | 548 | 935 | 1250 | |
| Max Current | Cooling | A | 7.2 | 8.0 | 12.0 | 13.5 |
| Heating | A | 7.5 | 8.5 | 12.0 | 13.0 | |
| Max Power input | Cooling | W | 1250 | 1600 | 2500 | 2800 |
| Heating | W | 1350 | 1500 | 2500 | 2700 | |
| Refrigerating&Fan System | ||||||
| Refrigerant/Charge | kg | R410A/0.480 | R410A/0.55 | R410A/1.06 | R410A/1.37 | |
| Compressor | Type | Rotary | Rotary | Rotary | Rotary | |
| Brand | RECHI | GMCC | GMCC | SANYO | ||
| Expansion device | Capillary tube | Capillary tube | Capillary tube | Capillary tube | ||
| Indoor air circulation(Cooling/Heating) | m3/h | 430/430 | 550/550 | 1300/1300 | 1300/1300 | |
| Indoor fan motor | type | Cross flow 22001-000273 | Cross flow 22001-000273 | Cross flow 22001-000389 | Cross flow 210900290B | |
| Output | W | 14 | 14 | 25 | 45 | |
| Capacitor | uF | 1.5 | 1.5 | / | / | |
| Indoor fan speed H/M/L | Cooling | rpm | 1100/1000/900/800/700 | 1250/1150/1050/950/850/750/600 | 1350/1250/1050/850/750 | 1270/1200//1000/850/700 |
| Heating | rpm | 1100/1050/950/850/800 | 1250/1150/1050/950/900/850/800 | 1350/1250/1050/850/750 | 1270/1200//1000/850/750 | |
| Evaporator | a.Number of rows | 1 | 1 | 2 | 2 | |
| c.Fin spacing | mm | 1.3 | 1.3 | 1.4 | 1.4 | |
| e.Tube outside dia.and type | mm | Φ7,innergroove tube | Φ7,innergroove tube | Φ9.52,innergroove tube | Φ7,innergroove tube | |
| Outdoor fan motor | type | Propeller 22001-000552 | Propeller 22001-000552 | Propeller fan 22001-000551 | Propeller fan 22001-000551 | |
| Output | W | 25 | 25 | 33 | 33 | |
| Speed | r/min | 895 | 895 | 1000 | 1000 | |
| Condenser | a.Number of rows | 1 | 1 | 1 | 2 | |
| d.Fin type | Louver Fin | Louver Fin | Louver Fin | Louver Fin | ||
| e.Tube outside dia.and type | mm | Φ7,innergroove tube | Φ7,innergroove tube | Φ9.52,innergroove tube | Φ7,innergroove tube | |
| Connections | ||||||
| Connecting Pipe | Gas | mm | Φ9.52(3/8”) | Φ9.52(3/8”) | Φ9.52(3/8”) | Φ12(1/2”) |
| Liquid | mm | Φ6(1/4”) | Φ6(1/4”) | Φ6(1/4”) | Φ6(1/4”) | |
| Connecting Wiring | Size x Core number | 4×1.0 | 4×1.0 | 3×1.5;4×0.75 | 3×1.5;4×0.75 | |
| Others | ||||||
| Suitable area | m2 | 9~16 | 15~23 | 20~30 | 30~50 | |
| Max. refrigerant pipe length | m | 15 | 15 | 15 | 15 | |
| Max. difference in level | m | 5 | 5 | 5 | 5 | |
| Operation temperature range | ℃ | 16-31 | 16-31 | 16~31 | 16~31 | |
| Net dimensions (W x D x H) |

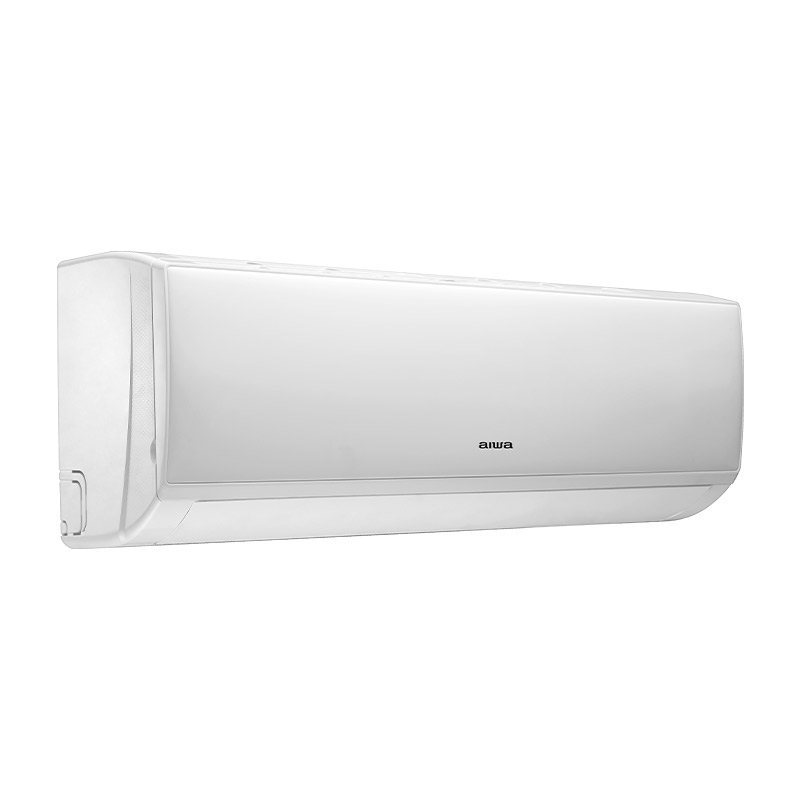

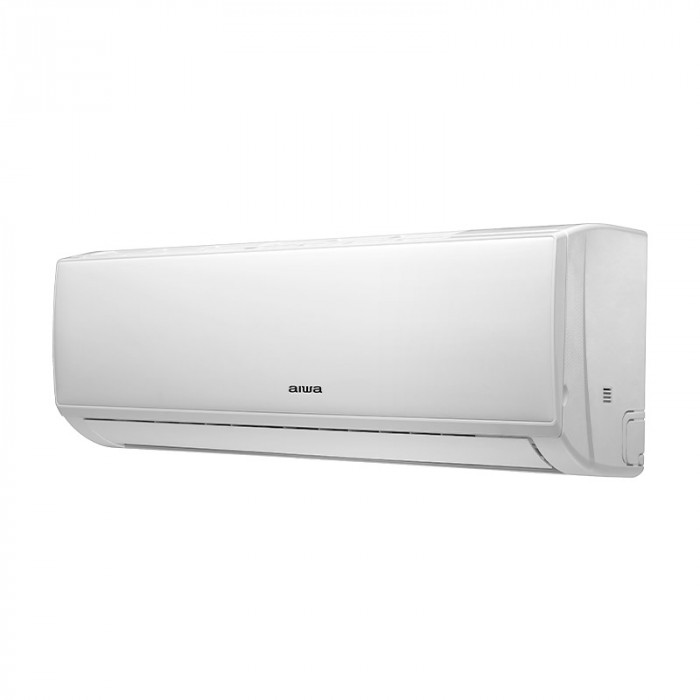

Indoor | mm | 698×255×190 | 777×250×201 | 910×294×206 | 1010x315x220 |

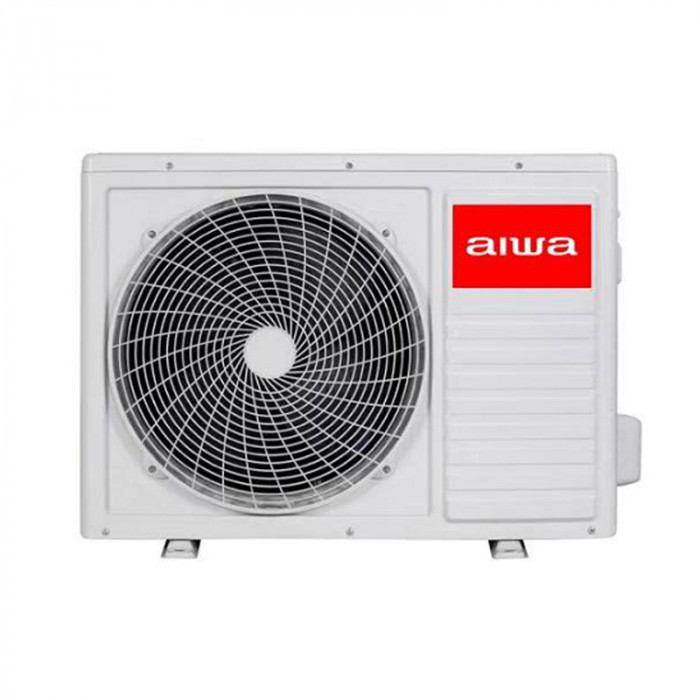

| Outdoor | mm | 712×276×459 | 712×276×459 | 853×349×602 | 853×349×602 | |
| Net weight | Indoor | kg | 6.5 | 8 | 10 | 13 |
| Outdoor | kg | 24 | 26 | 28 | 32 | |
| Packing dimensions (W x D x H) |
Indoor | mm | 764×325×257 | 850×320×275 | 979×372×277 | 1096×390×297 |
| Outdoor(w/o pipe) | mm | 765×310×481 | 765×310×481 | 890×385×628 | 890×385×628 | |
| Gross weight | Indoor | kg | 8.5 | 10 | 13 | 16 |
| Outdoor(w/i pipe) | kg | 27 | 29 | 32 | 35 | |
| Loading Capacity w/i pipe | 20’/40’GP/40’HQ | 372 | 350 | 212 | 196 | |
IF
Description
| Wisdom Gentle Feel nature |
 |
|
||
|
 |
| Double sterilization and purification Natural and pure breathing |
| UVC deep ultraviolet sterilization, healthy and clean air supply, moist and antibacterial technology, Brings a healthy, warm and humid environment like nature. |
