Model 18K 24K
Type Cooling Only Cooling Only
Control type Remote Remote
Power supply Ph-V-Hz 1Ph-220-240V~50Hz 1Ph-220-240V~50Hz
Voltage Range V 165~265 165~265
Cooling(T1) Capacity Btu/h 18000(2050~18595) 24570(3040~25930)
Capacity W 5275(600~5450) 7200(890~7600)
Rated power Input W 1990(230~2400) 2800(350~3000)
Rated current A 9.1(1.1~10.9) 12.5(1.6~13.7)
EER W/W 2.65 2.57
Max power Input W 2400 3000
Max current A 10.9 13.7
Moisture removal Liters/h 1.8 2.6
Indoor air flow m3/h 1100 1200
Indoor fan type   centrifugal centrifugal
Indoor fan speed H/M/L Cooling rpm 1050/970/820/720/660 1150/1050/880/720/660
Heating rpm 1050/970/820/720/660 1150/1050/880/740/660
Dry rpm 720 720
Sleep rpm 720 720
Indoor fan motor Intput W 45 45
Outdoor fan type   Propeller fan Propeller fan
Outdoor fan speed rpm 880 880
Outdoor fan motor Input W 39 39
Indoor noise level         dB(A) 45 47
Outdoor noise level         dB(A) 55 56
Compressor Type    Rotary Rotary
Indoor unit Dimension(W*D*H) mm 1750×348×348 1750×348×348
Packing   (W*D*H) mm 1932×490×500 1932×490×500
Net/Gross weight   Kg 28/36 29/37
Outdoor unit Dimension(W*D*H) mm 853×349×602 853×349×602
Packing  (W*D*H) mm 890×385×628 890×385×628
Net/Gross weight   Kg 32/37 36/41
Refrigerant piping Liquid side/ Gas side   mm(inch) φ6(1/4″)/φ9.52(3/8″) φ6(1/4″)/φ12(1/2″)
Max. refrigerant pipe length    m 15 15
Max. difference in level        m 5 5
Pressure High(DP) MPa 4.3 4.3
Low(SP) MPa 1.9 1.9
Refrigerant   R32 R32
Ambient temperature -15~50 -15~50
Suitable area m2 20~35 30~50
Connecting Wiring Size x Core number 4×1.5mm2 4×2.5mm2
Power supply cord 2.5mm2 4.0mm2
Drainage Pipe O.D16mm O.D16mm
Qty 20’/40’GP/40’HQ 90 90


Cool feeling New ideas for a comfortable life

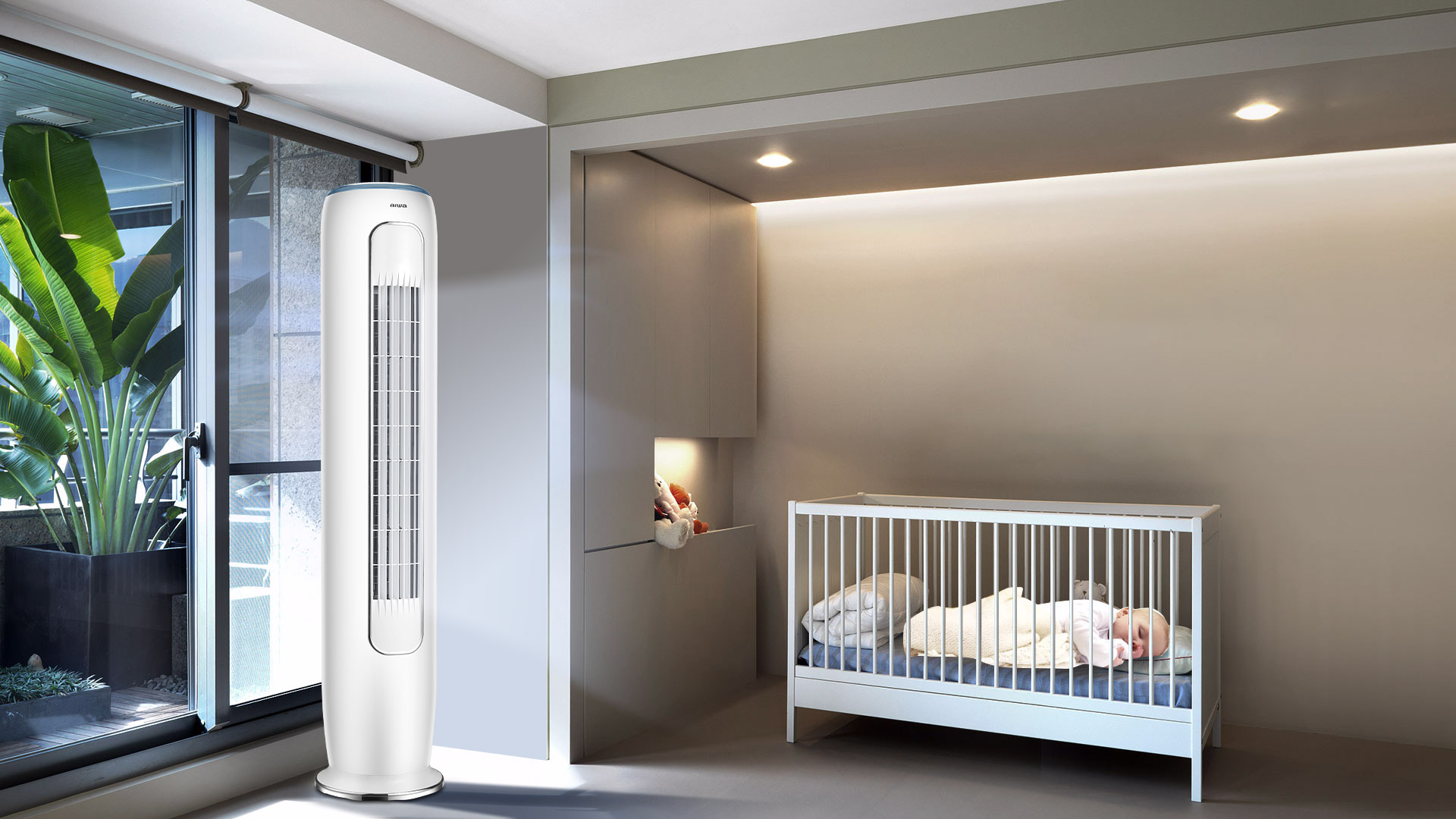

The AC tower fan adopts dual eddy current noise suppression technology, 18 decibels* like a lover’s whisper. Enjoy life comfortably without fear of disturbance.



Silent air supply Customized and intimate without disturbing life
Dual eddy current noise suppression technology, 18 decibels* like a lover’s whisper Enjoy life comfortably without fear of disturbance.



Titanium high temperature double steam self-cleaning
Intelligent and innovative self-cleaning technology, one-key operation is more worry-free, The air is fresh and health is from the inside out.


Double drive frequency conversion Enjoy pleasant temperature faster
The AC tower fan from Aiwa enjoys double compression, a symmetrical rotor compressor, and dual power. The whole machine produced by Aiwa, the air conditioner wholesaler, runs efficiently, smoothly, and quietly.


18 soft wind blades 1440 soft wind micro holes The smallest aperture is only 3.5m Smart cool feeling soft wind
An intelligent, cool feeling soft wind system produced by air conditioner wholesale will be traditional. The hard wind of the ac tower fan is scattered to avoid cold wind direct blowing, low forming speed, smooth laminar flow, and soft wind greatly increase comfort.



Aiwa air conditioner Ecological air conservation expert
