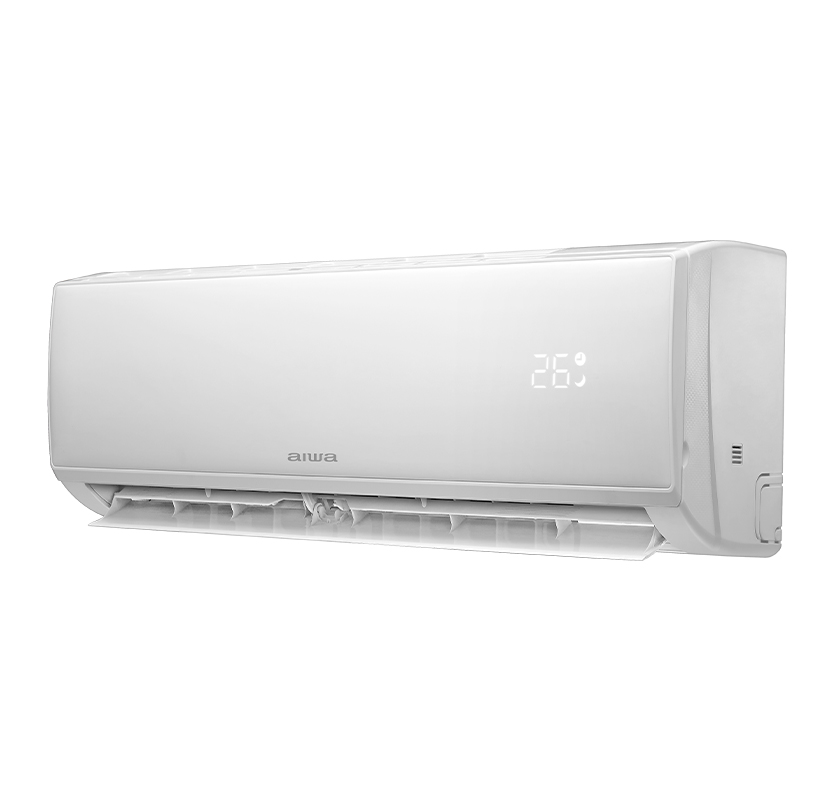

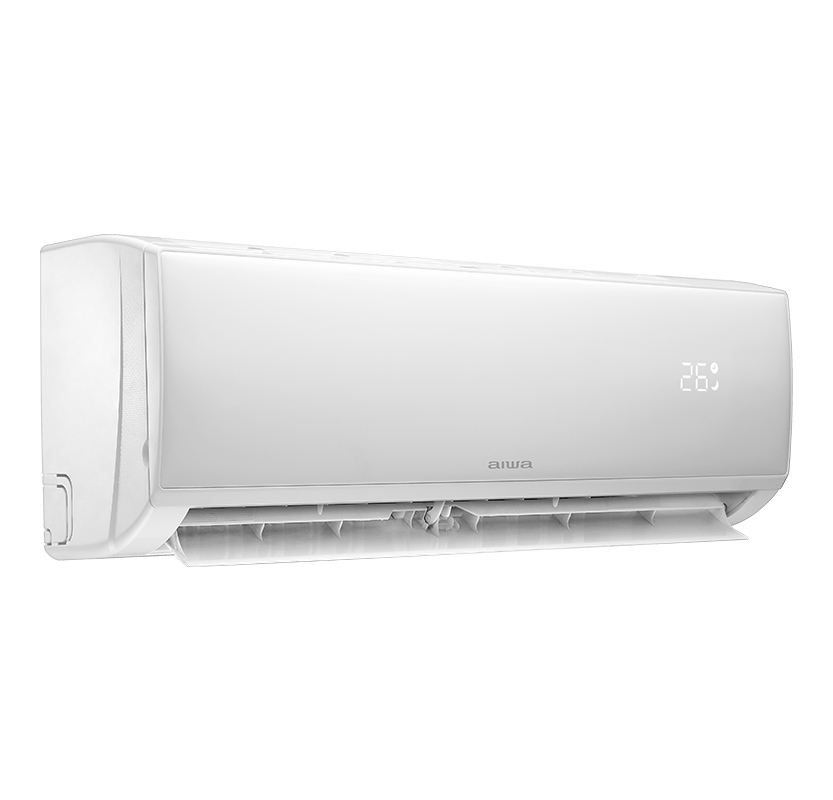

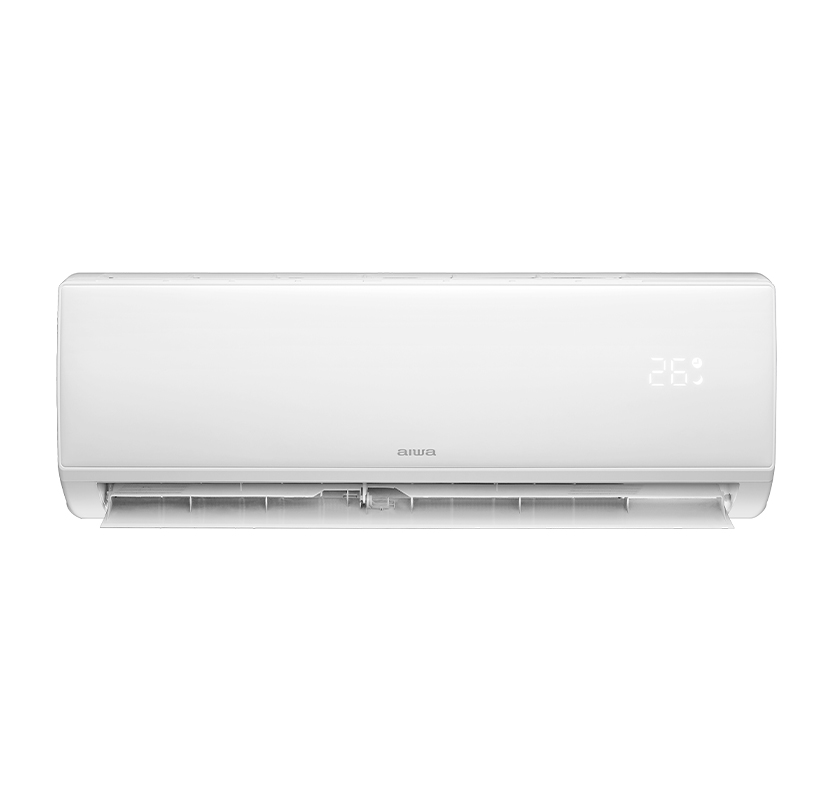

Specification of European New Effiency DC Inverter Split
Model No. 9K 12K  18K
Type heating pump heating pump heating pump
Control type remote controller remote controller remote controller
Declared  cooling capacity W 2600(940~3320) 3300(1000~3810) 5000(1250-5900)
Declared heating capacity W 2650(940~3380) 3500(1000~3910) 5100(1250-6080)
Pdesignc W 2600 3300 5000
SEER declared W/W 6.1 6.1 6.1
Energy  Class   A++ A++ A++
Pdesignh Average W 2100 2400 3800
SCOP Average declared W/W 4.0  4.0  4.0
Energy  Class(Average)   A+ A+ A+
Declare capacity(-10℃) W 2000 2200 3600
Back up heating capacity(-10℃) W 100 200 200
Moisture removal Liters/h 1.00  1.2 1.5
Indoor sound power(S/H/M/L/Mute) dB(A) 52/47/43/35/32 52/47/43/35/32 54/50/47/43/36
Outdoor  sound power dB(A) 62 62 65
Indoor sound pressure(S/H/M/L/Mute) dB(A) 42/37/33/25/22 42/37/33/25/22 43/41/38//35/27
Outdoor  sound pressure dB(A) 52 52 55
Electrical Data
Power supply 220-240V~/50Hz/1P 220-240V~/50Hz/1P 220-240V~/50Hz/1P
Power supply side Outdoor Outdoor Outdoor
Voltage Range V 165~265 165~265 165~265
Operating current Cooling A 4.7(1.2~8.0) 5.5(1.5~9.0) 8.2(1.7~12.0)
Heating A 4.4(1.2~9.0) 5.3(1.5~10.0) 7.2(1.7~13.0)
Power consumption Cooling W 890(240~1390) 1096(290~1500) 1550(330-2350)
Heating W 800(240~1560) 1060(290~1730) 1375(340-2550)
Refrigerating System
Refrigerant type/Charge/GWP/CO2 equivalent R32/0.70kg/675/0.473tonnes R32/0.70kg/675/0.473tonnes R32/1.00kg/675/0.675tonnes
Compressor Type Rotary Rotary Rotary
MFG RECHI  RECHI  SANYO

Indoor air circulation  Cooling/heating m3/h 560/560 560/560 820/820
Indoor fan type Cross Flow Cross Flow Cross Flow
Outdoor fan type Propeller fan Propeller fan Propeller fan
Outdoor air circulation  m3/h 2200  2200  2600
Connections
Connecting Wiring  Core  x Size 4×0.75mm² 4×0.75mm² 4×0.75mm²
Expension device Capillary Capillary Capillary
Connecting Pipe Gas Inches 3/8″ 3/8″ 3/8″
Liquid Inches 1/4″ 1/4″ 1/4″
Others
Application area m² 9~16 14~22 20~35
Max. refrigerant pipe length    m 25 25 25
Max. difference in level        m 10 10 10
Operation temperature range             ℃ 16-31 16-31 16-31
Ambient temperature range              Outdoor ℃ Cooling:-15-53/Heating:-25-30 Cooling:-15-53/Heating:-25-30 Cooling:-15-53/Heating:-25-30
Indoor ℃ Cooling:17-32/Heating:0-30 Cooling:17-32/Heating:0-30 Cooling:17-32/Heating:0-30
Net dimensions Indoor mm 790×275×192 790×275×192 920×306×195
(W x H x D) Outdoor mm 795×549×305 795×549×305 853×602×349
Net weight Indoor kg 8.5 8.5 11
Outdoor kg 25 25 35
Packing dimensions Indoor mm 860×345×265 860×345×265 990×380×265
(W x H x D)  w/o pipe Outdoor mm 835×340×585 835×340×585 890×628×385
w/i pipe Outdoor mm 835×340×585 835×340×585 890×628×385
Gross weight Indoor kg 10.5 10.5 13
Outdoor kg 28(w/o pipe)
29(w/i pipe)		 28(w/o pipe)
29(w/i pipe)		 38(w/o pipe)
39(w/i pipe)
Loading Capacity w/i pipe 40’HQ 264 264 195
