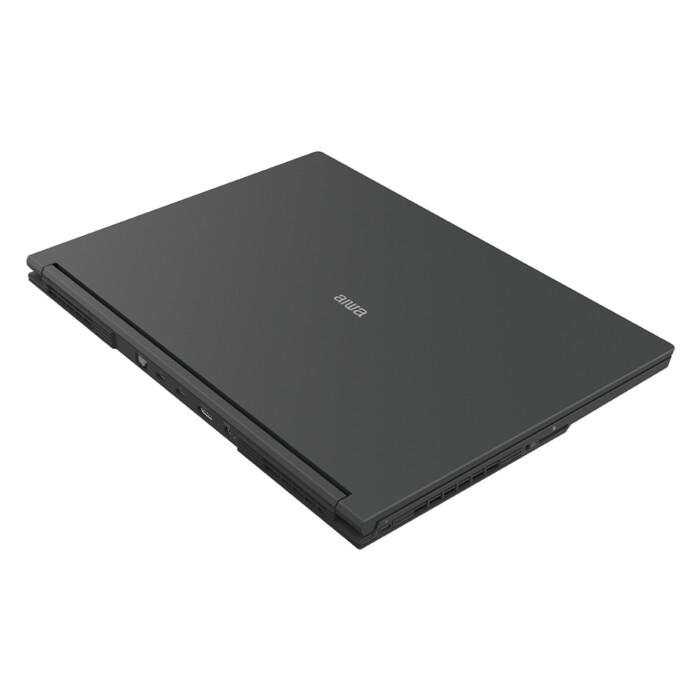

Product   Style Clamshell
LCD Size 16″ compatible with 15.6″
Resolution Support 2560*1600   LCD（2.5K, 16:10, 16″）
Touch Panel Interface type NA
Physical   parameter Material A/D   Metal，B/C plastic
Hinge open angle 165°
Kensington Lock Yes
Weight <2.2kg
Dimension 359*260*22mm
I/O   Port     MB Side
USB Type_A 2*USB3.2   Gen2 Side
USB Type_C 1*USB4（Data+DP）+1*USB3.2 Gen2（Data+DP） Rear
HDMI 1*HDMI   2.0
RJ45 10M/100M/1000M/2500M
DC Jack Ø5.5mm   (φ2.5mm)
DB Side
Audio Jack Ø3.5mm   Combo
Cardreader 3   in 1 card reader
Indicated light Charge LED Red   LED for charging
    Blue LED for full charged		 the   side of DC Jack
Power LED Red   LED for Performance mode
    Yellow LED for Balanced mode
    Green LED for Quiet mode		  in the Power key
Caps Lock LED White   LED  Caps Lock on the KB
Num Lock LED White   LED Num   Lock on the KB
Key Voice +/- NA
Power  Key on   C Cover
Key   board Back light Support, RGB adjustable
Matrix US/UK
Web   Camera Front 1M,   USB interface
Rear N/A
Touch Pad type All-in-one
Fingerprint location On   powerkey or touchpad Option
Battery   Capacity Li-polymer   Battery,4S1P/15.4V, 4800mAh , 74WH
Hardware
CPU Type AMD®  Rembrandt+ FP7r2 TDP  45W (cTDP 35W-54W)
GPU Type AMD® Discrete   Graphics eDP supports automatic switching of dGPU/iGPU display output
Type (1)   Navi33 (R23M-P1) ;Bus lane: x8;Width 128bit
(2) Navi33 (R23M-P2) ;Bus lane: x8;Width 128bit		 (R23M-P1)-cTGP   : 90W-50W
(R23M-P2) cTGP : 120W-75W
Display Memory GDDR6/8GB,   4 channel*16Gb(IO Data rate), speed 16Gbps, 180 Balls
Chipset Type N/A
Storage RAM DDR5-4800MHz  ; 2*SO-DIMM Up   to 32GBb; PHX support clock-rate 5600MHz
ROM (eMMC) N/A
SSD 2*M.2 2280(Default   SSD1) SSD1   PCIE Gen4/SATA, SSD2  PCIE Gen4/SATA;   SATA support by Rembrandt &  only
HDD NA
Extended Storage Support
Audio Codec Shenlei CX11880
Speaker 2*4Ω,   2W
MIC 2*D-MIC, Support   Cortana
Sensor Hall Sensor Support
TPM Interface type Option
RTC RTC Connector Yes
Others
Network Connections
WIFI WIFI chip model M.2   2230  PCIe
WIFI Standard Support   WiFi 802.11b/g/n/ac/ax, 2*2 MIMO
WIFI Frequency 2.4G/5G/6G Wifi   6E
Bluetooth Bluetooth Support
Version 4.2/5.1
LTE 4G LTE NA
Ethernet Gigabit Lan Yes 100M/1000M/2500M
Modern Standby Support or not Yes
Software
OS System Windows   11
Bluetooth   PLDR (Platform Level Device Reset) Support
Language Supported Support   multi-language
BIOS/EC UI spec SIXUNITED   customization
AMD
    Advantage Technology		 Smart  Shift Max Support
Smart Shift Eco(Graphic S/W) Support
Smart Access Memory Support
Smart CASO Support
Smart Access Graphics(Smart Mux) Support
Hot Key Fn+Esc Sleep
Fn+F1 Working   Mode Switch：Performance   mode/Balanced mode/Quiet mode
Fn+F2 Mute
Fn+F3 Vol +
Fn+F4 Vol –
Fn+F5 MIC On/Off
Fn+F6 Screen Brightness +
Fn+F7 Screen Brightness –
Fn+F8 Screen On/Off
Fn+F9 Flight Mode On/Off
Fn+F10 Touchpad On/Off
Fn+F11 Projection Mode   Switch Projection mode
Fn+F12 Ambient Light On/Off
Fn+Space Bar Keyboard   Backlight  Brightness2/Brightness1/Off
Standard Accessories
Adaptor INPUT AC   100~240V
OUTPUT 230W   ,19.5V/11.79A
