ype Item Description Remark
Product Style Clamshell
LCD Size 14.0″(16:9)，EDP
Resolution Support 1920*1080/1366*768
Physical   parameter Material  A/B/C/D   Plastic

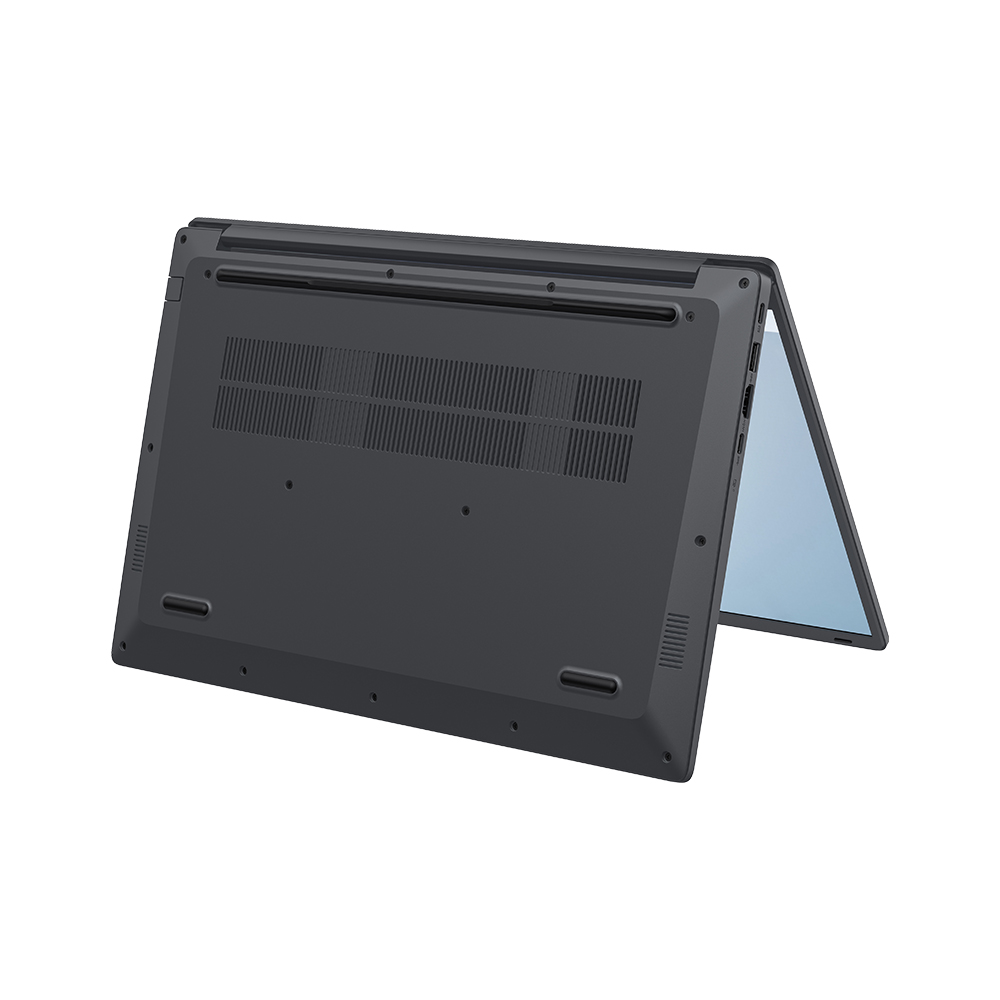

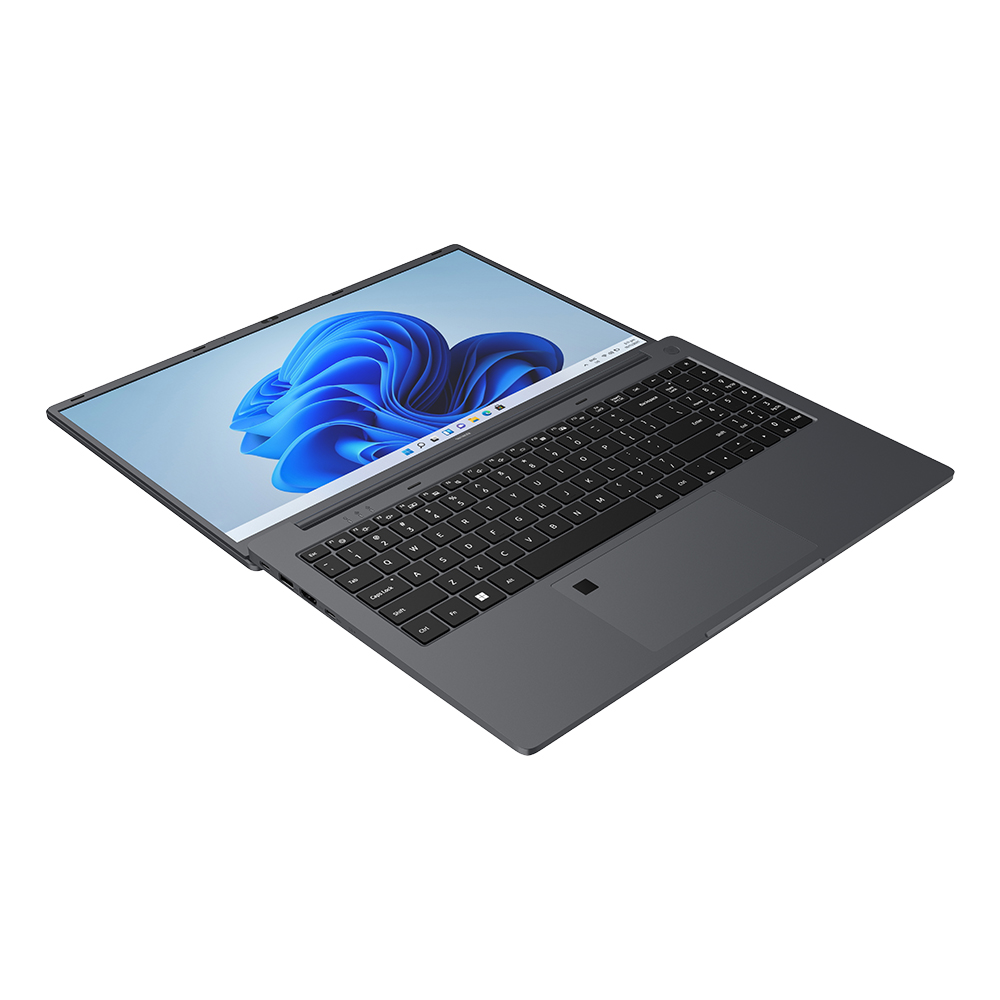

Hinge open angle 180°
Kensington Lock YES
Weight ＜1.4Kg
Dimension 321.7*206.6*19.4   mm
I/O Port     MB Side
USB Type_A 1*USB3.2   Gen1
DC 1*DC-IN
USB Type_C 1*[DP+PD+Data（USB3.2 Gen1）]Compatible with Data only
HDMI 1*Standard   HDMI1.4
DB Side
Audio Jack Ø3.5mm   Combo
Cardreader 1*Micro   SD
USB Type_A 1*USB3.2   Gen1
1*USB2.0
RJ45 1*GLAN
Indicated light Charge LED Orange   LED for charging
Blue LED for full charged		 C shell left side
Power LED Blue   LED C shell front
Caps LED Blue   LED
Numlock LED Blue   LED
Key Voice +/- NA
Power  Key On   C cover

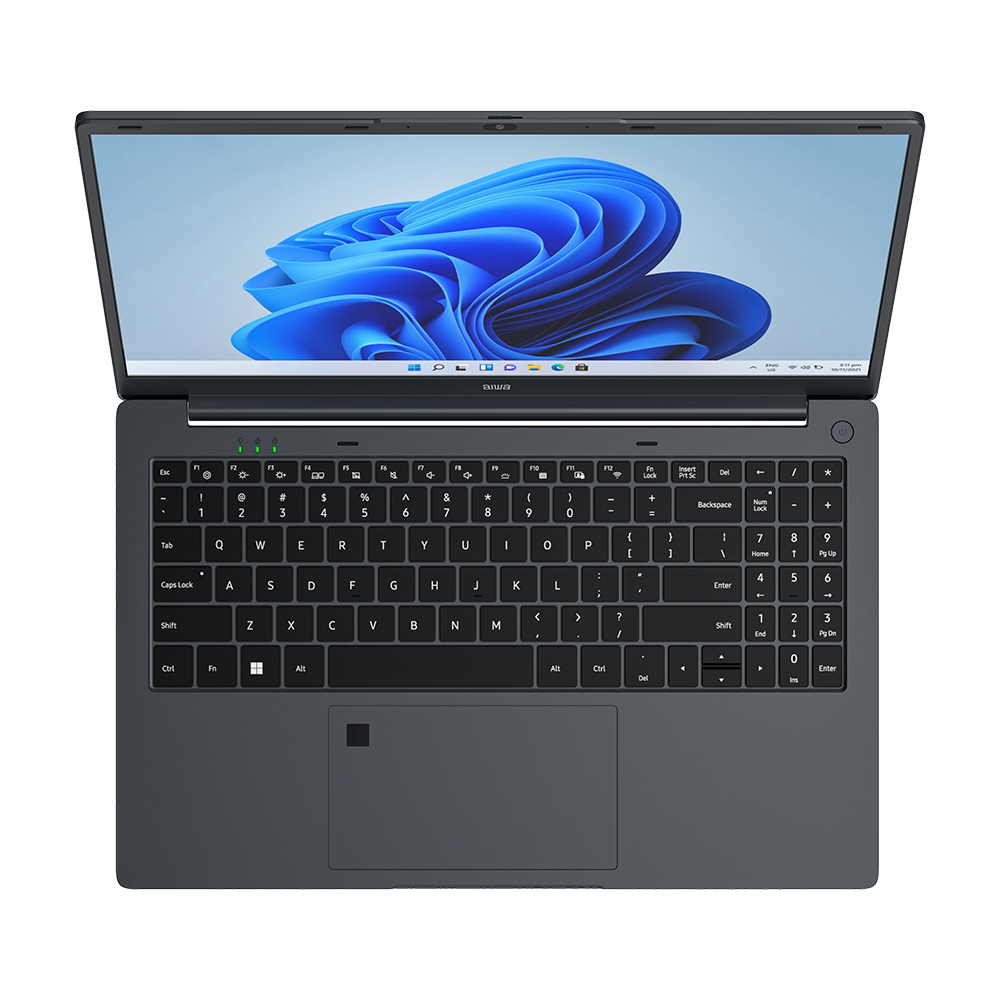

Key   board Back light Support Optional
Matrix US/UK
Web Camera Front 2M With Privacy Camera   Shutter
Rear N/A
Touch   Pad Type All-in-One
Fingerprint Location Touchpad Optional
Hardware
CPU Type Intel ADL-N   N100 UP   TO  15W
GPU Type Intel  Integrated graphics
Storage RAM 1*DDR4 SODIMM
ROM (eMMC/UFS) 1*eMMC
SSD 1*M.2   2280 PCIe3.0×4/SATA Auto
HDD NA
Extended Storage 1*Micro SD2.0
Battery Type Li-polymer Battery
Voltage 7.6V   6000mah，45.6Wh Stupid battery, Savvy fuel gauge, with BIS certification
Audio Speaker 8Ω 1W *2 or 4Ω 2W   *2   8Ω 1W *2
MIC 2*D-MIC in Camera   Module
TPM Interface type  SPI FTPM   or DTPM option
RTC RTC Connector Support Optional
Others Fan 6004 compatible with 6005
Network Connections
WIFI WIFI chip model M.2   2230  PCIe&CNVi
WIFI Standard Support   WiFi 802.11b/g/n/ac/ax
WIFI Frequency 2.4G/5G/6G wifi6E
Bluetooth Bluetooth Support
Version up   to 5.3
LTE 4G LTE NA
Ethernet Gigabit Lan Support Optional
Modern Standby Support or not Support
Software
OS System Windows   11/ Linux
Language Supported Support   multi-language
BIOS/EC UI spec SIXUNITED   customization
Standard Accessories
Adaptor INPUT AC   100~240V
OUTPUT 45W   PD Adaptor Compatible with fake Type-C charging, 19V*2.1A 40W DC
Certification
Electromagnetic Compatibility EMI EMI  Margin    3DB
ESD Contact discharge: 4KV, air discharge: 8KV
Modern PC Modern Device Level2
