Type Detail Descriptions

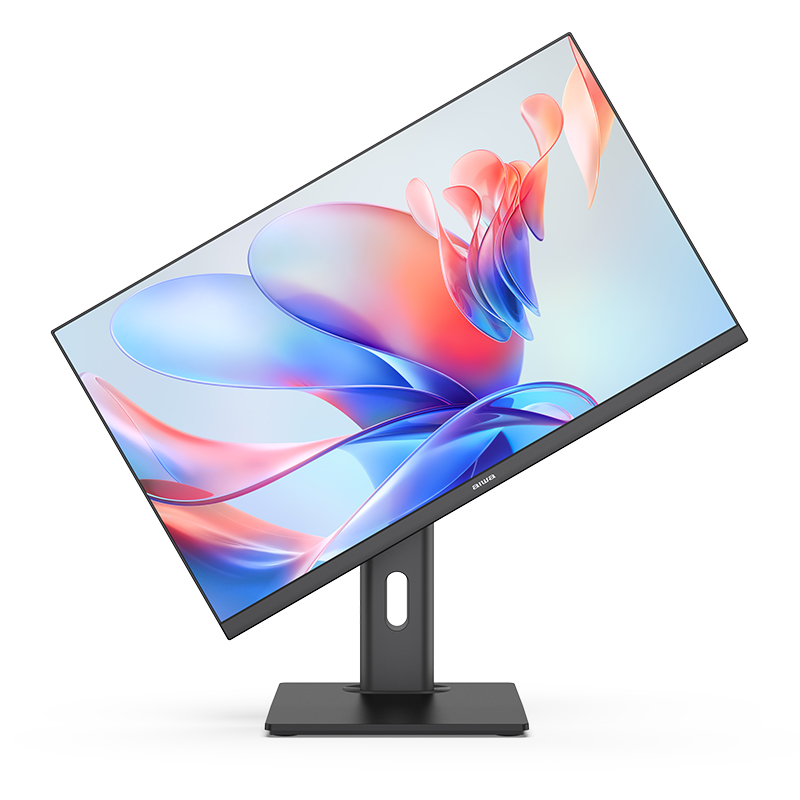

Product   Form Product Form AIO
Size 616mm*368mm
Material plastic
Colour Alpha/Black/White（optional）
Pedestal ascending   and descending+swivel
Weight 9.40kg
LCD Resolution 1920*1080(60Hz/100Hz)（optional）
Aspect ratio 27“  16：9
Brightness 250±20   cd/m2
connector LVDS
CPU Type ADL/RPL   PLATFORM (include U series 15W , P series 28W , H series 45W)
GPU type INTEL  Integrated Graphics
RAM SO-DIMM Slot*2 2*SO-DIMM   DDR4, Max. 64GB 3200MHz
SSD M.2 Slot *1 1*M.2   slot (Key M) 2280 SSD (supports PCIe 3.0 x4 or SATA   modes)128/256/512GB/1TB（optional）
Hard disk support 2*2.5   inch notebook SATA connector（optional）
Camera support 3.0/5.0/8.0MP（optional）
Speaker Box 2*   built-in 4Ω/3W speakers
MIC support DMIC*2（optional）
TPM support TPM   2.0（optional ）
Fingerprint support NO
WIFI WIFI module M.2   for WIFI(PCIe+USB & CNVi)
BT support BT4.2/5.1/5.2
Ethernet support 1*10/100/1000Mbps
DC IN DC *1 φ5.0×2.5mm   DC 19V/6.32A
HDMI OUT HDMI*1 1*   HDMI 1.4 typeA
DP/VGA/COM DP/VGA/COM*1 1*   DP/VGA/COM(Choose 1 out of 3)
USB USB-A*4 2*   USB3.2 Gen2+2*USB2.0
RJ45 RJ45*1 1*RJ45   10/100/1000Mbps
Audio OUT Audio OUT jack*1 1*Audio   OUT jack
MIC IN MIC IN jack*1 1*MIC   IN jack
USB-A USB2.0/3.0*2 2*   USB3.2 Gen2/2*USB2.0（optional）
USB-C USB-C*1 1*   Type-C 2.0
SD card Three   in one card reader*1 1*   Three in one card reader
Headphone Combo jack Headphone   Combo jack*1 1*   Headphone Combo jack
Adapter standard DCφ5.0×2.5mm   DC 19V/6.32A
Keyboard standard optional
Mouse standard optional
OS OS Support Windows   10(64bit), Windows 11， Linux
office Yes(optional)
